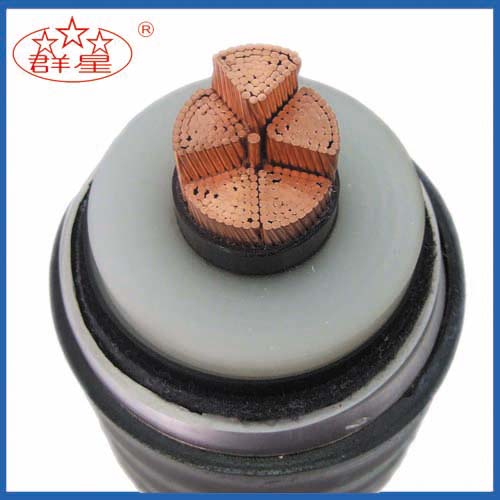

35kV及以下高低压交联电力电缆

时间:2014-07-05 | 浏览量:13075

详细描述

产品标准:


   交联聚乙烯电力电缆按GB12706《额定电压35kV及以下铜芯、铝芯塑料绝缘电力电缆》标准生产,同时还可根据用户需要按国际电工委员会推荐标准IEC、英国标准、德国标准及美国标准生产。


电缆的型号:

YJV YJLV YJY YJLY
YJV22 YJLV22 YJV23 YJLV23
YJV23 YJLV23 YJV33 YJLV32
YJLV33
适用范围:

本产品适用于工频额定电压3.6/kV-26/35kV办理配电线路作配送电能之用。

使用特征:

●工频额定电压Uo/U为3.6/6KV-26/35KV。
●电缆导体的允许长期最高工作温度为90℃。
●短路时(最长持续时间不超过5s)电缆导体的最高温度不超过250℃。
●电缆敷设时环境温度应不低于0℃。
●电缆弯曲半径:三芯电缆不小于电缆外径15倍;单芯电缆不小于电缆外径20倍。

电缆额定电压的选择

●电缆的额定电压应适合于电缆系统的运行状况,用Uo/U(Um)KV表示。
Uo--电缆设计用的导体对地或金属屏蔽之间的额定工频电压;
U--电缆设计用的导体间的额定工频电压;
Um--设备可承受的“最高系统电压”的最大值。

●三相系统用电缆的Uo值推荐如下表:

U
kv
Um
kv
Uo*kv
A和B类系统
C类系统
6
7.2
3.6
6
10
12
6
8.7
15
17.5
8.7
12
20
24
12
18
30
36
18
-
35
40.5
21
26

A类系统--该类系统任何一相导体与地或接地导体接触时,能在1min内与系统分离;
B类系统--该类系统仅包括单相接地故障短时运行的条件,接地故障时间应不超过1h,但在任何情况下,最长不超过8h,每年接地故障总持续时间不超过125h;
C类系统--不属于A类,B类的系统。

生产范围:

型号
Type

芯数
Nomber
of
cores
额定电压 Rated Voltage kV
3.6/6
6/6
6/10
8.7/10
8.7/15
12/20
18/20
18/30
21/35
26/35
导体标称截面 Nominal cross-section of conductor
mm2
YJV
YJLV
YJY
YJLY
1
25-800
25-800
25-800
35-800
50-630
50-630
50-630
3
25-630
25-630
25-500
35-500
50-400
50-400
50-400
YJV22
YJLV22
YJV23
YJLV23
1
25-800
25-800
25-800
35-800
50-630
50-630
50-630
3
25-630
25-630
25-500
35-500
50-400
50-400
50-400
YJV32
YJLV32
YJV33
YJLV33
1
25-800
25-800
25-800
35-800
50-630
50-630
50-630
3
25-630
25-630
25-400
35-400
50-240
50-185
50-150
